Removing broken wood tip from inside pile

Thought those of you, who like me shoot wooden arrows and sometimes have the misfortune to break the pile off might find this a useful tip. No pun intended.

Quite often I find my arrows break directly behind the pile, leaving a small piece of wood inside the pile which can be difficult to remove especially if you want to reuse the pile.
I know some people drill the wood out and others simply throw away the pile.
Well I thought I would show how I remove the broken piece of wood.

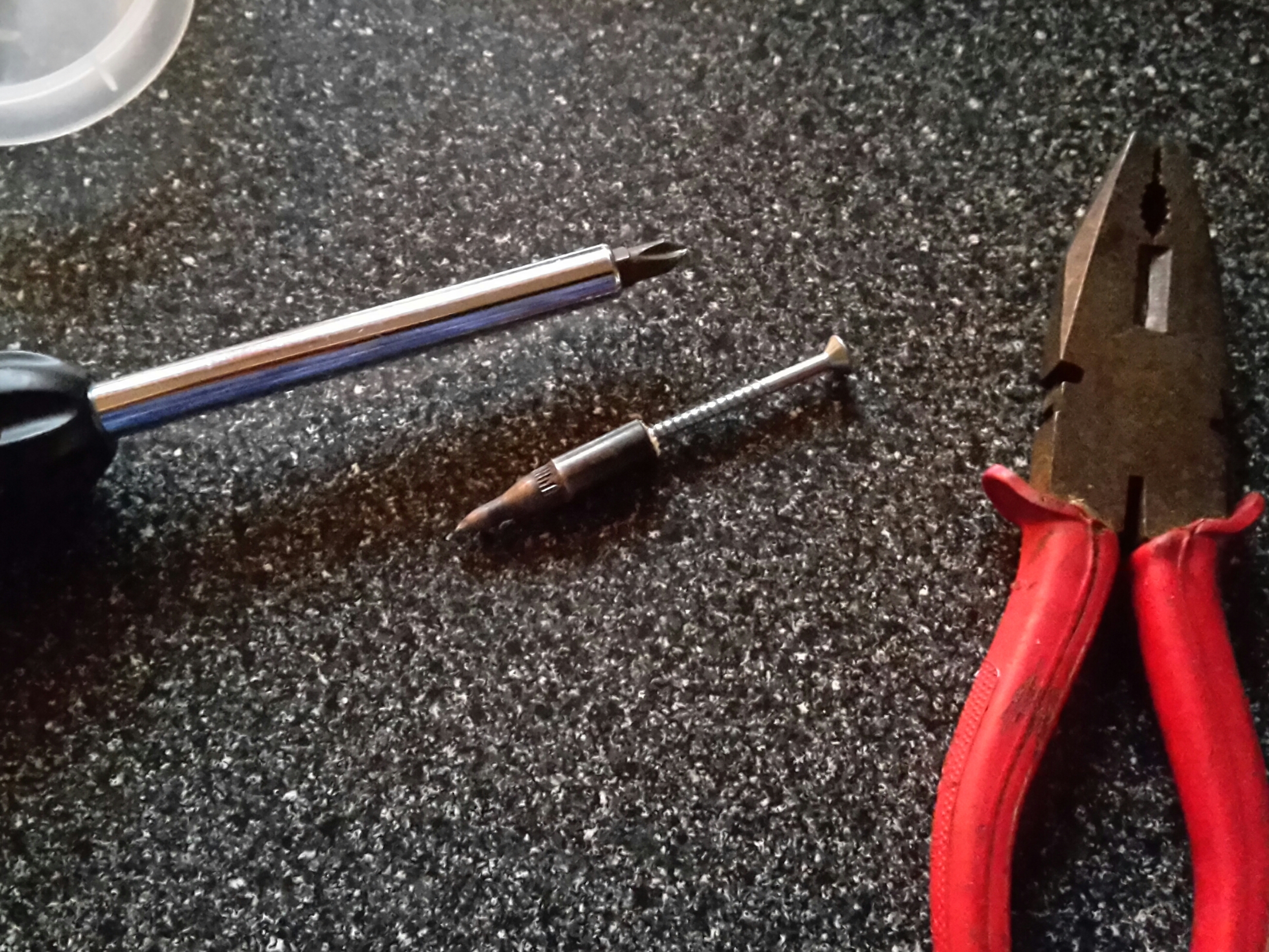

Tools required

Tools required

The tools required are
1 x long wood screw 2 1/2″ is ideal (cross head)
1 x screwdriver
1 x gas stove or gas ring
1-2 x pliers
1 x small pot or basin of water
Step 1
First stage is to carefully take the screw and screw it into the wood still in the pile.

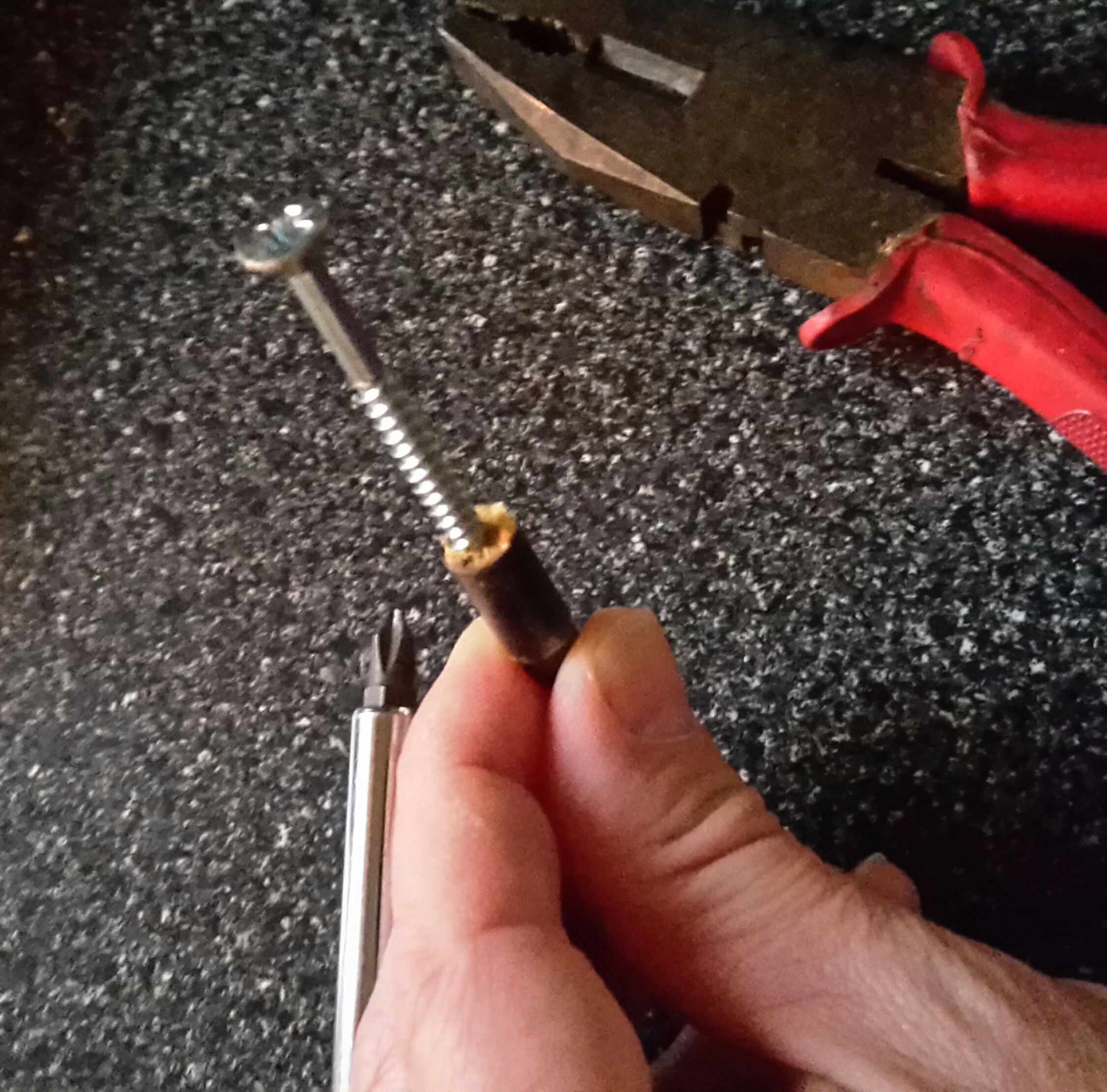

Screw into wood

Screw into wood

Step 2
Once the screw is secured in the wood, you need to heat the pile up as this breaks down the glue securing the wood to the pile.
Holding it by the screw you can heat the pile using the gas ring. It should only take 10-20 seconds.
Word of warning here.
I usually use screw on piles, but if you have taper fit or parrell fit you can have the piles pop off as the glue and gases in the glue expand under the heat.
The reason I mention this is on one occasion when removing a pile I left it in the ring to heat up too long as I worked on another. I heard a loud pop and saw the pile shoot across the kitchen towards the window and the screw and wood went in another direction. Fortunately no one was  injured and nothing was broken (otherwise I think Sharon might have injured me)

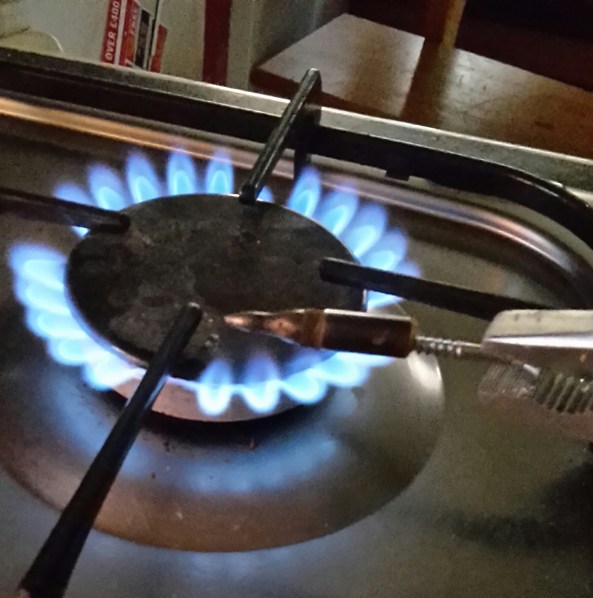

Heating the pile

Heating the pile

The other thing to be careful of is to not let the wood burn as this will not only smoke the kitchen out possibly triggering a smoke detector but also make it harder to remove the wood.
It’s worth doing this in a well ventilated room as the glue can stinks, especially the two part epoxy I use. How long you keep it in the flame will vary depending on the glue. Hot melt, melts quickly whilst some epoxy ones might take 20 seconds. It’s a bit of trial and error here.

Step 3
Holding the now heated pile  in the pliers (don’t grab it with your hand as it will be hot) take the screw driver and continue to screw the screw into the wood.
You should find that because the glue has melted and lost adhesion to the pile the screw will force the wood free. Resulting in the wood remaining on the screw and free of the pile.

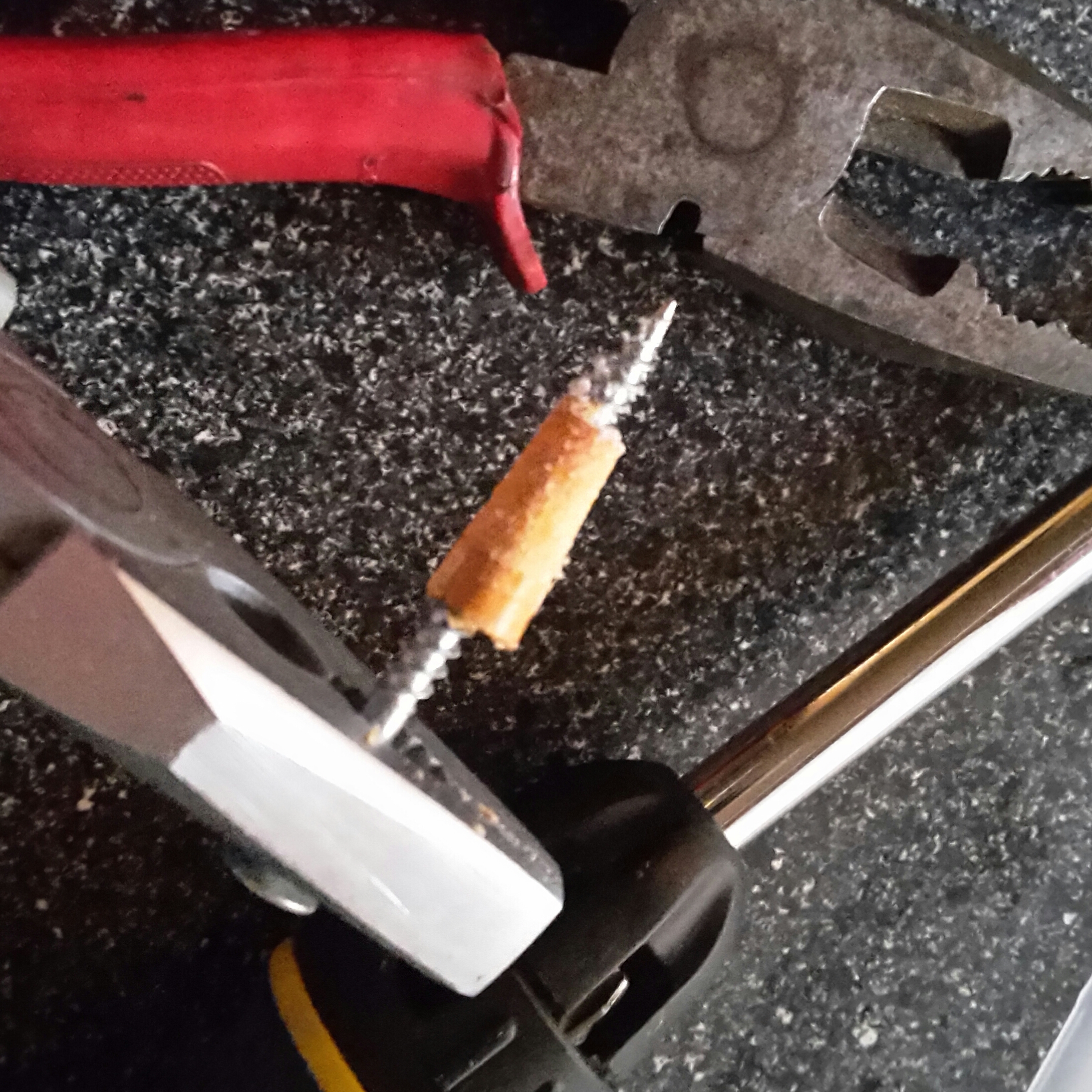

Wood remains on pile

Wood remains on pile

Step 4
Drop the pile and screw into a pot of cold water to cool.  Once cool you can dry the pile.
You might need to clean out the inside of the pile of glue residue with a bit of wire wool or I find an old shaft tapered down and screwed in and out a couple of times works well to dislodge any residue.
The easiest way to remove the wood from the screw is to hold the wood in the pliers and then using the screw driver “unscrew” it.
Hope you find this useful.
Thanks for reading.

Aim small, miss small

Nice video by Jim Grizzly Kent about aiming and focus with archery, which is worth viewing.



Some readers might remember I wrote something a while back Aiming for the Fish’s eye

Thanks for reading

Shoot Report – Liberty Archers – July 2014

Liberty woodland

Liberty Archers woodland

This was the first time we had made it to Liberty Archers shoot. This made us Liberty newbies and  we weren’t exactly sure what to expect, as the stories of robo deer had spread along with the tall tales of huge steaks and wild turkey (the drink not the bird).
Add to this was that the shoot was to be themed winter wonderland which was kind of ironic, since it was probably the warmest weekend of the year so far with temperatures hovering round the low 30 degrees centigrade. This would also be my first real test of shooting with a glove rather than a tab of for any real duration.
We arrived Friday afternoon following a three hour drive, some times crawl along motorways. Many archers had arrived  a day or so before including a couple of members of the SVF club who had been kind enough to take our tent along with others tents to pitch, this meant we were all located together.
So after unpacking the last of the camping gear and a quick run to local takeaway we settled down for a couple of drinks and an early night. Friday night / Saturday morning saw a huge thunder storm overhead with a very impressive light show, visible even through the tent and tree canopy. It left us wondering if a travel lodge  might have been a better plan, if this was to be a taste of the weekend weather.  Fortunately the rain didn’t last and we were left with a dry warm read very warm day come morning.

Saturday

The course on both days would comprise 42 targets, more than the normal 40 targets, the extra couple had been added so as not to disappoint those archers on the waiting list. These targets were all 3Ds ranging from small raccoon to huge moose and elk. I don’t think there were any stretched shots with a few lovely set natural looking shots.

An abandoned 3D target reclaimed by nature

An abandoned 3D target reclaimed by nature

The ground is flat, very flat but then again it is next to an airbase (Lakenheath). In fact the grounds are part of the air force base with you camping a stones throw from the runway overshoot. (If you had arrived a day or two earlier you could go plane spotting which I think some people did). Thankfully it’s very sandy ground so the heavy rainfall of Friday night quickly drained away. The downside of this is your arrows burrow themselves into the earth, so searching for any misses can take time. If you aren’t a fan of bugs then be warned there are a few as we discovered when packing the tent up on Sunday.

Sharon shooting on Saturday

Sharon shooting on Saturday

Unlike other shoots this had a really relaxed almost party atmosphere, with the organisers working hard to keep everyone happy. Most noticeable from the shooting perspective was the work they put in to finding lost arrows with marshals having metal detector near permanently attached to their arms. Thanks guys for all that work in that heat it is really appreciated by all.

Saturday - view of the group

Saturday – view of the group

Our shooting group would comprise six of us Theresa, Ben and their two grandchildren  Conrad, Charlie joined Sharon and I. So one flatbow two barebow and three hunting tackle; beginning to sound like Christmas Carol lyrics.

Most groups had between 5-6 archers but it didn’t seem to cause any real delays in our progress round the course. I think the biggest issue was the heat on Saturday, which at times was very uncomfortable. Part of the woodland runs alongside the main road and there we a couple of shots where you could see the traffic in the background which was a bit off putting, maybe some nets would have been a good idea.

By the end of the day we were all tired and looking forward to a relaxing evening.

Saturday Night entertainment

Saturday night was party time and Liberty put on a great show complete with Christmas lights, music, father Christmas a sleigh and of course it was drawn by reindeer. Though saying that the deer were lacking target zones as they were made of polystyrene.  Did I mention the wild turkey, there always appeared to be a bottle being passed round. The theme encouraged lots of archers to enter the spirit of things and to go in fancy dress, with Sharon having made an ice queen costume.

Sharon in her costume

Sharon in her costume, yes that is a blonde wig

The organisers arranged Saturday night as a steak night too, so there was plenty of food to help soak up the alcohol which was flowing. You can see a brief YouTube video of the evening celebrations here.

Sunday

Sunday morning dawned with bright and clear skies, though maybe not so many clear heads. I’m guessing there were a few sore heads as the camp was a lot quieter first thing with less activity early on.

Sunday would see the same shooting group except for Ben whose s health didn’t enable him to join us. Think he may have overdone it  a bit in the heat of Saturday.
Me preparing to shoot on Sunday

Me preparing to shoot on Sunday

Sundays course was similar to Saturdays with the organisers changing a few of the 3ds and peg positions so you wouldn’t be shooting exactly the same course. The nice thing was there were a few very nicely framed shots between trees, that proved quite decepetive.

Sharon shooting on Sunday

Sharon shooting on Sunday

I also think I got the luckiest shot of the weekend on a 3D boar (glad it was modeled on a male boar).
Lucky shot on boar

Lucky shot on boar

Fortunately Sunday wasn’t as hot as the previous day and there seemed a few less people, so the day flowed well. By the end of the day I was a little happier with using the glove, though there’s still a long way to go before I’m completely comfortable.

Novelty shots  Robo Deer

Robo deer is a somewhat famous or is that infamous target which Liberty is renowned for. Made up of 6mm steel plate cut to the shape of a deer (hence the name) with a 5 inch circle hole to represent the kill area.
It’s a one arrow target with the option of shooting a different target but with a lower score. With it being about 18-20 yards downhill its not the hardest. All yYou have to decide what to go for.

Robo Deer from the peg

Robo Deer from the peg

So you can run the risk of going for the deer and possibility of breaking the arrow if you missed the soft spot. If you hit the metal you get 16 points if you hit the soft spot its 20 points.
By the end of the weekend, the top of the boss saw a collection of broken arrows where people had gone for it but failed and had broken their arrows.

Robo Deer up close

Robo Deer up close

When we got to robo deer on the first day I’d just had an arrow flick off a target and develop a slight bend. Not wanting to use a good arrow I thought Id give this one a go and lo and behold it sailed perfectly into the soft spot.  Sadly this was not repeated on the second day with my arrow clipping the metal and exploding in a shower of splinters and fletchings.

Overall it was a very enjoyable weekend and far more sociable than we were expecting helped by the light hearted party on Saturday night and laid back feel. It was great to see so many SVYF club members out at a shoot too, with many camping.
The club did quite well too, with  Chris and Keith Harley, Debbie, John, Jason and Colin all placing. As for us, Sharon won ladies Hunting Tackle despite not being happy with how she shot on Sunday. Amazingly on Sunday I shot far better than expected, resulting in winning Gents Hunting tackle. Guess I’m getting used to using a glove after all.
As always thanks for reading.
