Hardest lessons to learn in archery – Watch the weight Or why we need to watch our weight

No not a comment on obesity in archery but a quick look at how weight in many different forms can effect archery, whether we are talking about the draw weight of your bow or the weight of the arrows used.

So when can too light be a bad thing, and again I’m not talking about the archers weight here or anorexic, but in fact arrow weights.

Before I launch into this article though I’d like to thank my guest co-author another Rob, Rob Cook.

Rob Cook

Rob Cook

As many of you know I’m a big traditional archer shooting wooden bows and wooden arrows, so when it came to checking my facts with carbon arrows and so on, so I enlisted Robs help. Rob was also one of the originators of the new Traditional Bow hunter class in the NFAS and has extensive knowledge on the bare bow scene.

Bow International ran an article a few issues back on the effect of arrows weights on arrow flight and I know other sites including The Push have talked about the importance of matching your arrows to the bow.

Too light an arrow and archers can encounter several issues. Light arrows can fly faster and some say further, but they can be affected by wind to a greater degree. also there may not be the mass weight to absorb the energy from the bow limbs on release as effectively. in essence its like a mini dry fire.

Most bow manufacturers will specify an optimum mass weight for your arrow and if you look on just about ever carbon arrow in production will give you an arrow weight in grains per inch

To give you an example of what I mean, a bow maker might say the arrow should be 9 grains per pound of draw weight, so for my draw weight of 45lbs that would be 405 grain arrow weight. Through a lot of trial and error I have found an arrow round 450 to 460 works best from the bow, anything below 420 and the bow becomes noisy  and the arrows don’t perform as well.

Rob has created this table of data on different arrow specs and weights for some of the more common arrows on the market. We’ve used a 100 grain pile in all the arrows below calculations and show two lengths 28 inches and 30 inches, so we can give a total weight. To keep it simple Rob has used a 45lb bow weight for spine as I used that weight in the above calculation. It should all make sense but if you have any questions let us know.

Manufacturer Shaft Type                    spine @28 Arrow Weight gpp spine @ 30 Arrow Weight gpp
Avalon TecOne 600 330 7.3 600 344 7.6
Beman Classic 600 367 8.2 500 434 9.6
Carbon Express Predator II 2040 354 7.9 2040 370 8.2
Carbon Express Heritage 75 388 8.6 90 424 9.4
Easton Carbon One 660 325 7.2 550 347 7.7
Easton Axis 600 340 7.6 600 355 7.9
Easton 5MM Axis Traditional 600 357 7.9 600 373 8.3
Easton ST Axis N-Fused Camo/Axis Trad 600 360 8.0 600 376 8.4
Easton Apollo 610 367 8.2 560 392 8.7
Gold Tip Traditional 600 373 8.3 600 388 8.6



So why is this so important and why am I bringing it up here on this blog?

The NFAS has seen a new bow style recently, that of Traditional Bow Hunter. This style allows archers to shoot carbon or aluminium arrows off the bow shelf (no arrow rests). It is seeing a number of traditional archers that shoot flatbow or hunting tackle which uses wooden arrows giving it a go. They are buying carbon arrows of the right spine but I wonder if they are considering the effect of shooting lighter arrows on their bows? I was discussing this with a couple of people including Rob, so we thought we would put this together.

It is worth remembering that a lot of traditional wooden bows have not been constructed to take ultra-light carbon arrows often used in target archery or are sold as cheap alternatives to wooden or aluminium arrrows. Please don’t get me wrong some bows have been constructed to take such arrows but not all.

N.B. Adding a heavier pile to the arrow will increase the overall weight but it will also change the dynamic spine of the arrow, making it more flexible or weaker.

So what can you do?

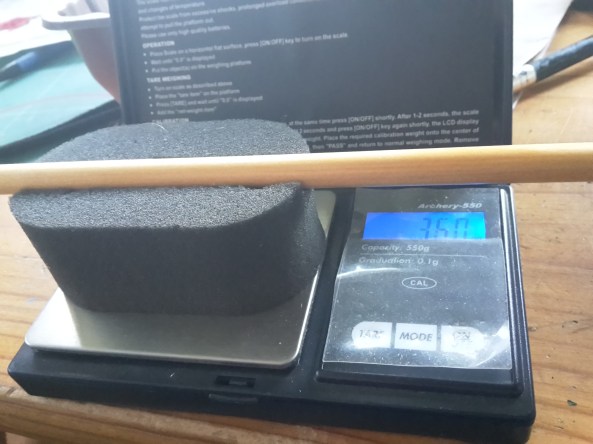

  • Check the weight of your wooden arrows and carbons so you know the difference.
  • Check what your limb / bow manufactures recommended weights are. Most if not all will have this information on their websites or would be happy to share it with you. After all they don’t want to see you trash your bow as it reflects badly on them.
  • Going for slightly longer arrows as this will increase the mass weight too, this is why we have included two sizes in the above table.

I hope this has proved interesting and helpful. I would like to say thank you to Rob for all his help and number crunching with this. He produced a load of data on different arrows in a long excel document, as well as speaking to several bow manufactures to check minimal weights.

Thanks for reading.



The hardest lessons to learn in archery are…

I’ve had a great response to my question “What they feel is the hardest lesson to learn?” and for that I would like to thank all my followers and readers for their input.
I know that there are many people out there that will have your own opinion on what they feel is the hardest lesson to learn,but based on the responses, there are a few things coming up time and time again.
  • Aiming or rather, how do you aim whether you are a gap shooter or instinctive archer?
  • Stance and footing on a field shoot, where you might not be on level ground.
  • Coupled with aiming is distance judgement, which can be especially tough on a well set field course, where the course layer has used every trick inthe book to fool you.
  • I think the biggest one though has to be drawing down or coming down when you’ve drawn up on a target but feel you have to release, even though you know something is wrong.
  • I’m also working on a post about the importance of arrow weights and importance of not shooting too light an arrow.
  • Over bowing, being to identify when you are shooting too heavy a draw weight bow.
My hope is to create a post on each of these topics in the next few weeks.
I’m planning on covering aiming in a future article but for those interested check out one of the recent coaching podcasts from the guys at The Push, which covers instinctive and gap aiming.
Thanks for reading.

New shooting style proposal – traditional bowhunter here’s some thoughts

Tree canopy in the autumn

Tree canopy in the autumn

As many of you know I shoot in the NFAS (National Field Archery Society) and each year it offers its members the opportunity to put forward proposals for new rules or ideas.  This year one proposal which has been put forward by members is for a new shooting style, that of “traditional bowhunter”

In essence this is shooting a non compound bow with carbon or metal arrows, off the shelf, with no sights, button, stabiliser, and using feather fletchings .

This differs from the exiting NFAS bare bow class by the stipulation of shooting off the shelf of the bow (not allowed to use a rest or button) and use of feathers for fletchings . Full description of the new class is below, please note that this is an expanded version to that shown in the NFAS magazine as it includes changes and suggestions on wording the prospers have received to date.

“Traditional Bowhunter

A bow of any draw-weight, but not a compound bow or crossbow, may be used.

The bow must be shot from the shelf or hand, No sight, rest, or button of any description can be used.

Only one nocking position is permitted (which may be indicated by nocking points both above and below the arrow). No other knots or attachments in addition to the string serving (excluding silencers), that could be used for sighting or location purposes, are allowed.

One anchor point must be maintained throughout the shoot with the index finger on the nock, be it split finger or 3 under or thumb loose. Face walking and string walking are not permitted. No draw-checks of any kind are permitted.

No external stabilisers are allowed (this does not include bow quivers that attach to the side of the riser, be it by bolts or limb grippers).

If a Bow Quiver is used, arrows must be free from deliberate markings that could be used as a sight. Arrows may be decorated with cresting, but cresting may not extend further than 2 inches in front of the feathers. If crested, when using a bow quiver, arrows must be tip first into the quiver to ensure cresting cannot be used for sighting purposes. No form of release aid is permitted. No deliberate marks can be added to the bow or arrow that can be used for aiming. Arrows shafts must be of non-wooden and non-bamboo materials, fletched with natural feather.

The handle may incorporate a cut-away of any depth to provide an arrow-shelf and the shelf may have a protective cover. Olympic recurves that have been altered to shoot from the shelf are permitted, but all attachments such as clicker screws and additional bolts/screws that are not required MUST be removed.”

Presently archers wishing to shoot this setup in the NFAS have to compete in the bare bow class this being largely dominated by Olympic style recurves with metal risers, buttons, stabiliser etc. Though the use of metal riser is not entirely the case, as some of the best archers in this class actually use wooden risers but all those have adjustable buttons and arrow rests.

This style of setup of bow appears to be very popular at present with a number of archers, both in the UK and overseas. I wonder whether part of the appeal with archers is the simplicity of the set up to that of the Olympic style, while others archers are less keen on shooting wooden arrows so would rather use carbon arrows for their consistency and durability.

Since the proposal was mooted in the last edition of the NFAS magazine I’ve had a few people ask my thoughts and I’ve spoken to several that are both for and against the proposal. The society’s Facebook group along with the members’ only web-forum has been quite active on the topic too.

Some people have asked why a new style is required as people wanting to shoot this set-up can shoot under the existing barebow rules, others have been less friendly saying they see the introduction of this class as simple as medal chasing (a little unfair I feel)

There are 10 shooting styles in the NFAS at present that cover just about all possible set ups from English longbow to compound unlimited (that’s compound bow, with release aid, sites, stabilisers and the kitchen sink, yes that is a joke)

Some archers seem to feel there are enough styles already, with others complaining that at the large shoots / events the prize giving already takes too long with all the awards.

One archer and reader of this site had a word with me at a recent shoot and pondered this  thought.

“I do wonder whether the creation of this class will eventually cause the demise of HT and possibly AFB as new archers are drawn to the ease of shooting with carbons. Could the art of making a good wooden arrow die out? Worth considering maybe?”

I’d like to think there is always going to be an appeal of shooting wooden arrows. Though I do think that newbies will want to shoot carbons as they give a better performance than woods or metals, along with being more durable and comparatively inexpensive, an important factor in an economy where money is scarce.

I wonder whether some of the appeal of the new style is also to do with the restrictions that the NFAS place on some current styles that limit the archers. The AFB or American Flatbow class is one that has been mentioned as under the NFAS to be able to shoot in this class the bow must not have any reflex /deflex; being one continuous curve. Also the shelf must be must short of centre, if cut to centre then it can’t be used in the class. This has resulted in a number of manufactured bows being classed “illegal” in AFB and have to be shot most commonly in Hunting Tackle.

What affect will a new style have? I’m not sure

  • Would it confuse newbies to the hobby? No I don’t think it will confuse them, if introduced carefully and clearly.
  • Will it increase the numbers at shoots? I doubt that as most shoots I attend are limited by the number of available places, and few are ever fully booked out. You might have individuals from other societies being more willing to give NFAS a go.

My personal view point

Ok, so first thing is a little thing really but I’m not a fan of the name “traditional bowhunter”. I see traditional as being wooden arrows not carbon. But in fairness this is entirely personal viewpoint. In fairness to the guys proposing this they did open up a Facebook poll with different name options and Traditional bowhunter was the favourite.

I can see why they’d like a distinction between shooting a bow with button, rest etc. and one shooting off the shelf. I guess you could argue this already exists with the American Flatbow class in the NFAS, which you have to shoot off the hand or the bow shelf and not a rest, but with wooden arrows only.

I find it interesting that there is a section on bow quivers included in the proposal. I can understand why they have included as they are very popular for those shooting in this style and there has been some comments on their use or rather in some case misuse, but I wonder if this statement is better located in the overall shooting rules of the society and not class specific as bow quivers can be used on compounds and recurve bows. Maybe I should write something on the different types of quivers, bow, back, side, Merits and flaws of them? Here is a picture of bow quiver for those not familiar with them.

Jims bow against the tree

Jims bow against the tree, showing his bow quiver

I do also wonder about the comment on arrow cresting and if this would be better located in the general shooting rooms. It also raises a question on  how this can be interpreted with manufacturers branding / logos or even arrow patterns, as these are not arrows cresting in the true sense. I have heard rumours that there has been some concern that archers could use arrow markings as a guide for distance judgement. (NFAS competitions are shot over unmarked distances)

My final observation on this proposal is I think the most important thing to remember. The NFAS is a democratic organisation, run for its members, and its membership can have their say, they may make suggestions and promote different views and ideas. You as an individual may agree or disagree with the idea that is your choice. It is very important that members have the opportunity to voice their ideas and if supported, for these ideas to be voted on etc. This democracy and opportunity is in my view needed for the health of the organisation or it may be seen as stagnating or inflexible for change.

Thanks for reading
