Tag Archives: arrow damage

Mar 4 2014

Early spring weekend activity

spring is almost here - snowdrops

spring is almost here – snowdrops

In one quiet less muddy corner of the car park there were a few signs of spring.
Whilst at the wood this weekend helping to prepare for next month shoot we bumped into a couple of friends Irene and David walking off the course having been down to the wood early.
In hand was an example of good grouping. Dave had been shooting his compound bow at the target but lost sight of where the arrow hit so thought he’d have another go.
A Course - Target 10

A Course – Target 10

The result a “Robin Hood” on the first arrow.

Robin hood arrow shot

Robin hood arrow shot

If you look closely you can see the carbon threads. Good shooting Dave though a bit costly on the old arrow front.
Just a quick note to Chris, Keith, Badger and Denzil. Well done guys on getting the new B course up and running over the weekend, 20 new shots all set up in 2 days is great going.

Also thanks to other members of the club who helped laying gravel on the entrance path  (50 odd bags of it) along with the 2 bags of hard core that went on filling in the ruts in the car park. Really good to see so many members helping out.
Thanks for reading.
Feb 24 2014

Shoot report – Paget de Vesey – February 2014

Well the Field archery season has started with a very, very windy Paget shoot thankfully the rain stayed away.  (An unusual event this winter). Though not officially the start as you can shoot all year round, I always think of Paget as the start of the shooting year.  (Previous reports can be found here 2013)
On this occasion we were joined by Roy and Karen from Frankley Bowmen each with new bows or limbs in Karen case and a new longbow for Roy. Our thanks to them for making it a really enjoyable day.
Sharon and Karen at Paget

Sharon and Karen at Paget

As always the food was fantastic with two separate food huts providing ample quantities of hot food, cakes and gallons of tea and coffee.

The course

The course layers set a challenging course made more so by the extremely strong winds in a couple of areas of the woods. The Paget ground is made up of 2 woods and the course was split between the 2. In hindsight I think it might have been better to move a few pegs closer in to the targets to make shorter shots that would have been less affected by the wind. Though it is a challenge enough to set a course that works, factoring in the weather makes it really hard.
They had also suffered from falling trees in recent storms resulting in course changes. Well done guys .
The course itself comprised of 36 mixed 3Ds and paper faces. The club capped the total number of competitors to 180 but with a few no shows on the day it meant most pegs had 4 archers making for an easy flowing day.

3D lion in tree

3D lion in tree

Another great shot was a 3D crocodile between tree stumps which gave a lovely window shot. Sorry I didn’t get a photo of this one. I did manage to get one of the mountain lion in the tree which was a lovely setting.

Arrow Casualties

With the strong wind it was somewhat inevitable there would be a few casualties, with Sharon breaking one but it was Roy who won the prize for the most unusual casualty. It’s not uncommon to see arrows snap behind the pile or in half if they encounter a branch, but I’ve never seen an arrow split like Roys.
Roy misjudged one target and skimmed the top of the boss. Clattering into some branches. After a short search we spotted it and appeared fine until you picked it up.

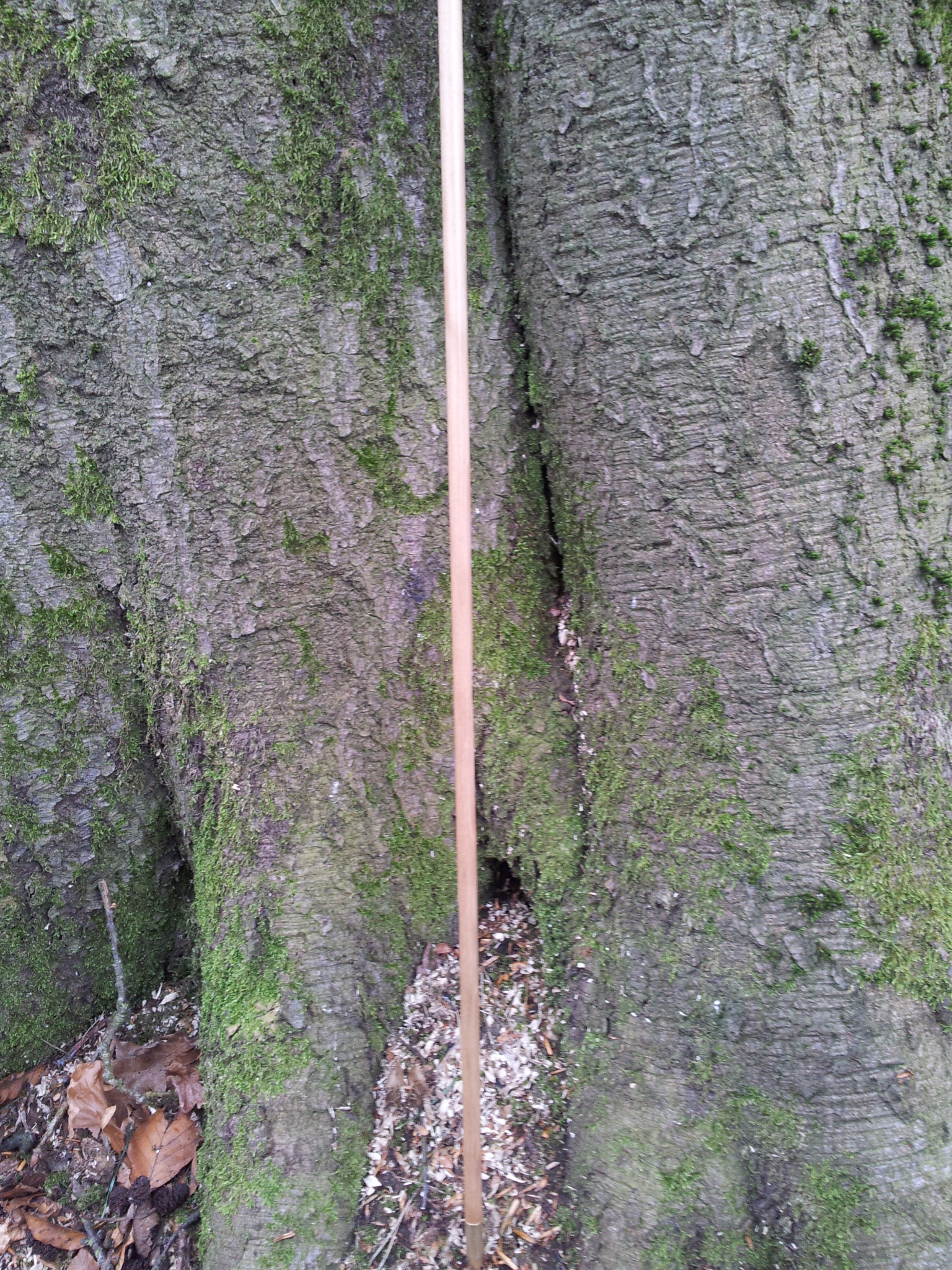

Image arrow looks fine

Image arrow looks fine

It had split down the line of the grain.

Split down grain

Split down grain

They say imitation is a great compliment if so I’m feeling very happy. In a recent post I made reference to a different kind of shot where there was 1 target face but at different sizes. Paget members who had shot it at our shoot liked the idea so much they copied the idea putting out a very similar shot.

Ironically this was the only target I missed all day as when I drew up for it a combination of wind and hand slipping resulted in me releasing early 😦
Neither Sharon or I felt we shot particularly well with the lack of practice evident but it was a good day shooting and catching up with friends.
SVYF did well coming away with a few medals. Well done to Chris Harley on her placing in ladies longbow. Next time keep focused and stop getting distracted. Congrats to young Alfie in placing in his first ever shoot.
Thanks for reading.
Oct 5 2012

Equipment part 4 – Failure and damage – Arrows

Damage can occur

No matter how careful you are equipment will get damaged over time and it is very important that you take the time to check your archery equipment to ensure you can spot issues before they become dangerous.

I’m going to concentrate on arrows in this section and write another one on bows in a week or so.

If you are a coach it is worth showing students and other archers the type of damage that can occur to their equipment.

One piece of valuable advice I’ve seen on a couple of sites is never assume an arrow is safe, even if it is brand new. Likewise expensive arrows can also be damaged in transit or manufacture, so always check them each time you shoot or retrieve them.

Here is a close up of an unusual style of arrow break.

arrow damage

split shaft close up

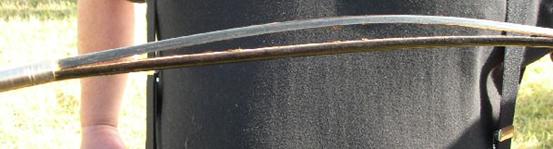

Another photo of  the same arrow shaft, you can see how it has split down its length.

split shaft full length

split shaft full length

Below image shows what happens when a wooden arrow impacts a wall  and the pile is flattened. Notice how the wooden shaft has snapped and then been forced into itself.

Arrow Damage

Compression break of wooden arrow

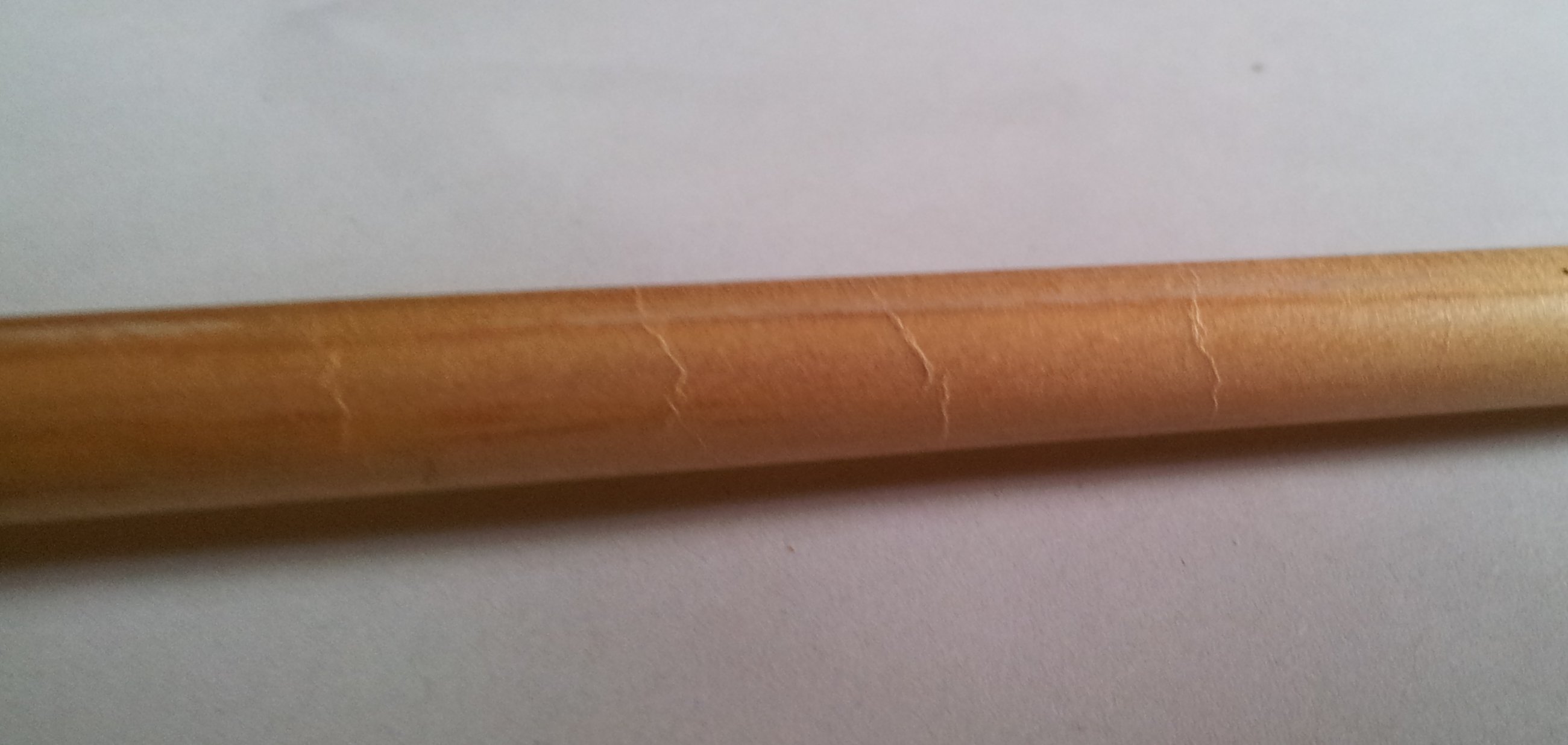

Sometime you can spot damage before it becomes a critical failure, below is a close up shot of a wooden arrow shaft that is showing signs of failure. You can see vertical crack lines across the arrow shaft. This will eventually result in the arrow bending or breaking.

damage to wooden arrow

Damage to wooden arrow

It’s not just wooden arrows that can fail and become damaged.

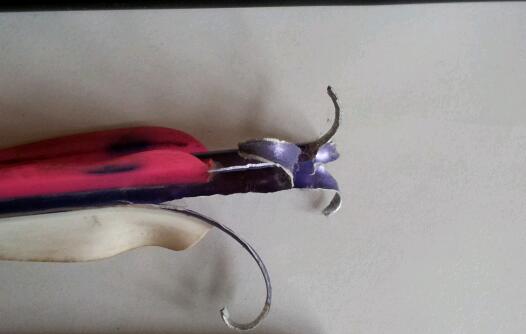

The photograph below shows what can happen to aluminium arrows . The archer had managed to hit their own nock with another arrow (great grouping in the target). The nock has shattered and the metal arrow has peeled back like a banana. This is sometimes called a Robin Hood Shot.

A Robin Hood shot

A Robin Hood shot

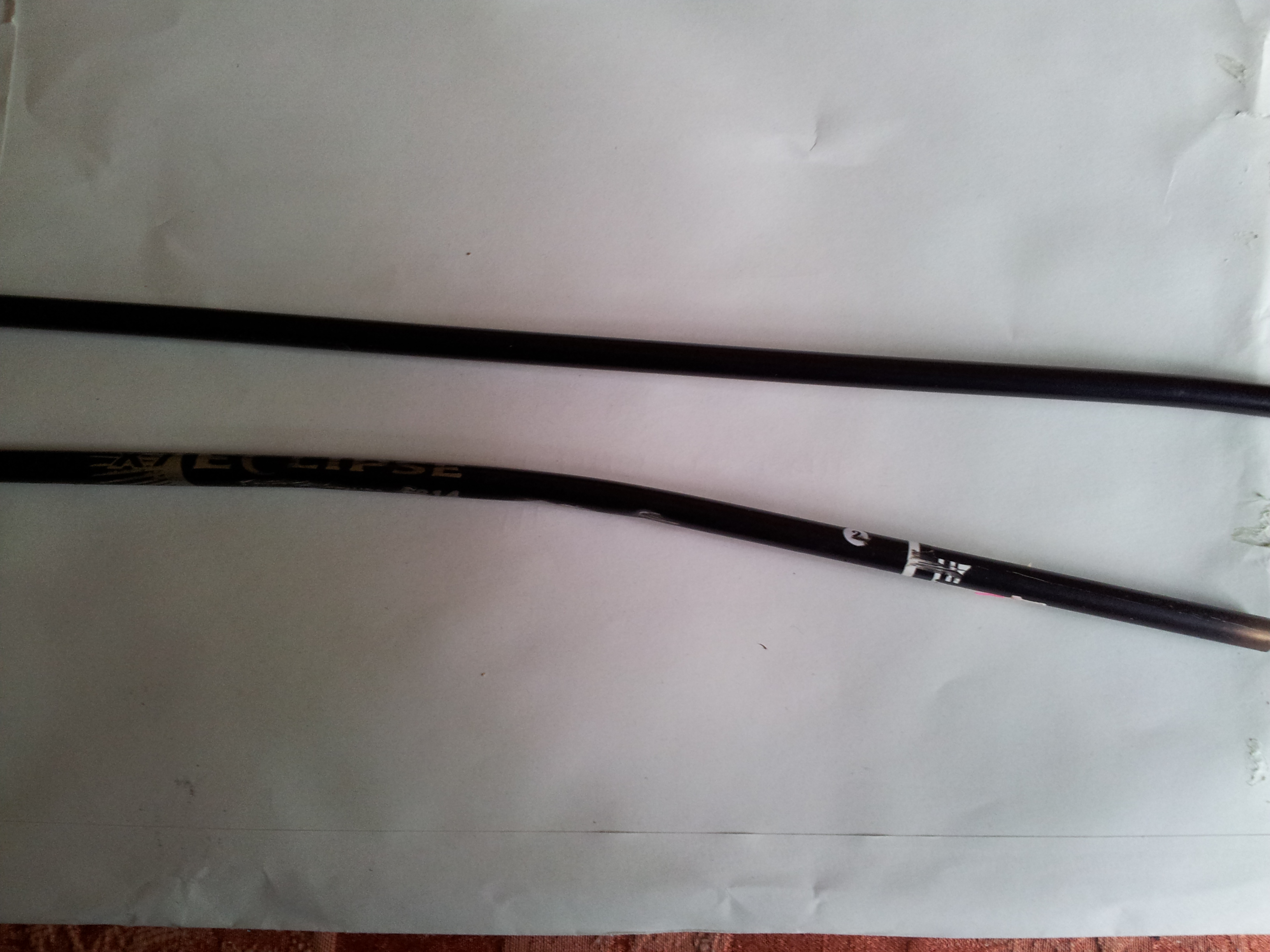

Obviously this arrow is no longer usable, but there are times when you will not have such a critical failure or damage. When your aluminium arrow might be only slightly bent and it can be possible to straighten them but it takes time, a level or expertise and correct straightening jig. Below shows a “slightly” bent arrow, following contact with a tree.

Bent arrows

Bent arrows

Carbon arrows also need checking regularly as they can split or worse still shatter. I’ve seen a compound shooter at a championships, release their arrow and it shatter into a million pieces, showering her and those around with carbon splinters. Fortunately no one was hurt and even more amazingly the bow was undamaged!

I know some archers now wear a Kevlar glove on their bow arm to protect them from any possible arrow failures.

It is not only at the bow end problems can occur, there are times when you are drawing arrows that the arrow may break, so it’s always worth either wearing a glove or using an arrow puller to give a cleaner and stronger grip. I’ve had to patch up a few people over the years who have cut themselves when drawing arrows that have split.

Also be aware of carbon splinters in targets. this often happens when the arrow pile has been forced into the shaft following a hard impact and resulting in the carbon shards breaking off.

A good way to test you carbon arrows is to flex the arrow, if you hear cracking or see splintering then dispose of  them. Also be aware that if you use arrow wraps, cracks can appear under these and are not always noticed.

Here are a couple of good sites and articles on testing arrows, be warned though there are a couple of graphic scenes of what can happen when an arrow fails.

http://www.huntersfriend.com/arrow-safety-warning.htm

http://www.youtube.com/watch?v=k6nIbvrMTbE

Tip – if you have a carbon arrow splinter on a shoot or when practising, don’t drop it into your quiver as it will leave splinters in the quiver. Take some tape and tape over the splintered section, this will stop loose pieces breaking off and fulling your quiver with razor-sharp splinters ( I always carry a roll of micropore tape in my first aid kit that is ideal for this.) You can then drop it into your quiver and dispose of it when you get home.

As always thanks for reading and I hope you’ve found this of use.
