Arrow making tips and advice



Okay so as many of you know I make a lot of arrows and if truith be known I quite like it. I find the process of making them relaxing a lot of the time. The thing is I tend to make wooden arrows and not many with aluminium or carbon shafts these days since Sharon swapped back from shooting barebow to shooting woods.

Well I’ve been making up some club training arrows in readiness for some new courses we are running in January. They are Mybow Cadets from Merlin Archery and I’ll be posting a review of the arrows in a few months, but in the meantime I thought I’d share this tip. It was one given to me by Steve a fellow Briar Rose club member who is very experienced in shooting barebow and making up such arrows.

When making them I noticed the nock tends to rotate in the shaft, making it a bit tricky at times when mounting them on the fletching jig. Now you could add a drop of glue to secure them, but Steve suggested using cling film. Yes, the stuff that normally covers your supermarket produce.

If you wrap the end of the nock that fits into the shaft with a little film and then insert the nock it provides a tighter fit whilst still allowing some movement for alignment purposes.

The amount required varies but with a little trial and error I found a length of 5 to 6 cm and about 12 mm wide worked best. Wrapped tightly round the end that fits in the shaft and it seems to work pretty well.

Well I hope this helps, let me know how it works for you or if you have any other advice or such fixes. My thanks to Steve for the tip.

Thanks for reading.

Tips and Advice – screw in points

Getting the perfect matched arrow takes time and relies on a number of factors, from overall arrow weight,  to flexibility / spine of the shaft, fletching size etc. One of  these factors is the weight of the pile or point. A heavier pile makes the arrow flex more, whilst a lighter pile makes the arrow stiffer.

For this reason we have been trying to fine tune Sharons’ arrows (Easton X7) and have recently changed her points from glue in pins to screw in points with obvious inserts into the aluminum shafts. The X7 are great arrows, and work well from here bow but we thought we might get a slight improvement. By using inserts we have a greater access to different point weights to experiment with.

Sharon Shooting

Sharon Shooting

The old piles came in at 60 grains and the feeling was it might be making the arrow a little too stiff. So we spent sometime looking at alternatives. By the way we have looked at going for carbon arrows but Sharon preferred the X7 as Carbon ones, as the carbons came in too physically light for here bow.

I’ve used a 2 part epoxy glue to secure the inserts into the shafts, which appears to work well. We’ve opted for these inserts and points which we got from Bow Sports. The inserts are 8/32 with 9/32bullet points.

Arrow points and insert

Arrow point and insert

The one thing with we’ve discovered is that the screw in points sometimes work lose. Now the easy answer to this is to apply a little glue, the only problem with this being that if you need to remove the piles the only answer is to then heat it up to break the glues bonds, which will also break the bonds of the glue used to hold the insert in.

One trick I’ve come up with using plumbers tape or PTFE tape. I cut a small piece about an inch in length and then wrap this round the threaded bolt, then screw this into the insert in the arrow.

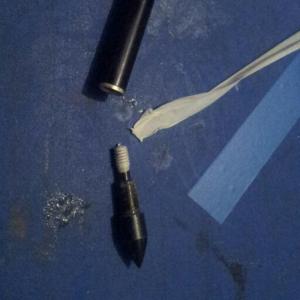

new pile and insert

New pile, you can see the tape wrapped round thread.

The result of using the tape is to make the threaded bolt a little tighter in the insert, so making it less likely to undo or loosen.

Technical Facts for those interested in weights etc

  • Old piles / nibs were 60 grain
  • Insert 14 grains
  • New screw in points 80 grain

Hope you find this of use and as always thanks for reading.

What arrows for beginner?

Early this week Sharon was asked by an archery friend what arrows she thought would be good for her brother. What an easy question to answer … NOT 😉

She asked me and my response was to suggest she found out some more information first

The type of arrow is dependent on numerous factors many of which I’ve covered but in short

  • Draw Length
  • Bow weight
  • Club rules
  • Bow Style – compound, recurve, longbow etc
  • Purpose – hunting/target/field etc

Shooting an arrow that is not matched to your draw length and poundage can be dangerous as it may snap under the pressure if the wrong poundage, or you might draw it off the arrow rest if too short. Beginners often find their draw length increases as they get more used to shooting, so make sure any arrows allow for this.

Likewise too light an arrow can damage your bow as there is insufficient strength and weight in the arrow to cope with the energy from the limbs, resulting in damaged limbs.

General rule of thumb is the longer the draw length and the heavier the bow draw weight you end up going for stronger arrows ie the numbers higher. This is explained best here, taken from the Easton Arrow site

The four-digit number refers to the outside diameter and wall thickness of the shaft. The first two numbers are the outside diameter in 64ths of an inch. The second two numbers are the wall thickness in thousands of an inch.

For example, a 2514 shaft would be 25/64th of an inch in diameter and .014 of an inch wall thickness. OD and wall thickness are the two variables in controlling spine for aluminum arrows.

http://www.eastonarchery.com/frequently-asked-questions

Quick point on club rules. Some clubs do not allow archers to use carbon arrows, others ban beginners from using them. Personally I am not a fan of beginners using carbon arrows simply because I prefer them to use alloys. Alloys are easier to find if lost, if they glance off a tree they might be slightly bent but can’t be straightened, they don’t break / shatter leaving carbon shards. This topic is covered in the recent stick and string podcast

For complete beginners I tend to use Easton Neo alloy shafts, they are 1618 and at full length 32 inches. They are great arrows for low poundage bows, up to about 24-26lb at 28″ above that they get a bit whippy.

Easton Neo

Easton Neo

Another good arrow for a slightly more experienced archer is the Easton Jazz.  They range from 14130  to 1916. I tend to find most beginners find the 1816 work well from their first bows that come in about 26lb-30lb.

Easton Jazz

Easton Jazz

Here is a link to Easton Arrows selection chart http://www.eastonarchery.com/uploads/files/52_target-sel-chart.pdf  this will help work out whats best for your bow.

As the archer progress good alloy arrows are the Easton x7  (think they are 1614 going from memory) which Sharon uses (recurve 38lbs and 26″, yes 26″ not 28″) and work well for the field archery we do. I’ve got some XX75 that are pretty robust too, but I tend to shoot wooden arrows more.

There are loads of really useful sites out there and a wealth of help in local clubs, so do a few searches and if you can try different arrows before you buy. Jordan Sequillion blog site covers this well as do others like Charlies

Please note I have no alliance or connection with any of the shops or manufacturers I mention here, other than being a customer. So I have no vested interest in this other that trying to help an offer my opinion.

I hope this is of interest and if you have any questions drop me a line. Always happy to help if I can. Thanks for reading.
